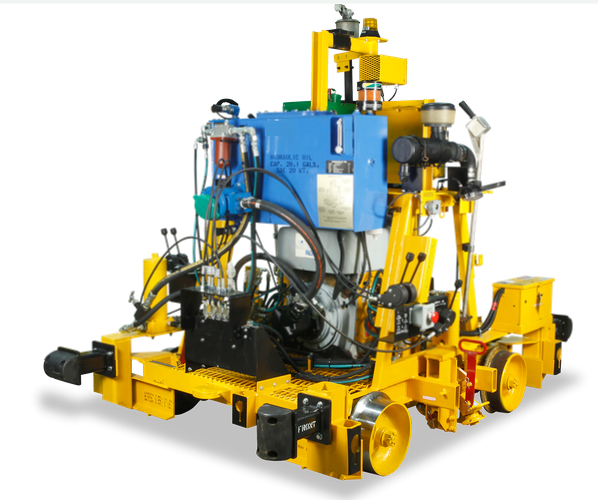

RAIL LIFTER

Category	Specification	Value
General	Weight	4000 lbs
	Length	92”
	Width	72”
	Height	97”
	Wheel Base	50”
	Travel Speed	4 mph (maximum)
Capacities	Fuel Tank	10 gallons
	Hydraulic Tank	30 gallons
Engine	Make/Model	Hatz 2M41Z, four-cycle, two-cylinder, air-cooled diesel
Hydraulic System	Pumps	Parker PAVC65
	Control Valves	Piston Pump
Electrical System	Battery	12 Vdc, 1150 cold-cranking amps
Drive System	Drive Type	Dual-axle chain drive, lever-activated clutch, hydraulic propulsion
	Axle Type	Stationary
Wheels	Size/Type	14-inch diameter, cast steel
Storage	Plates	35 plates on deck
