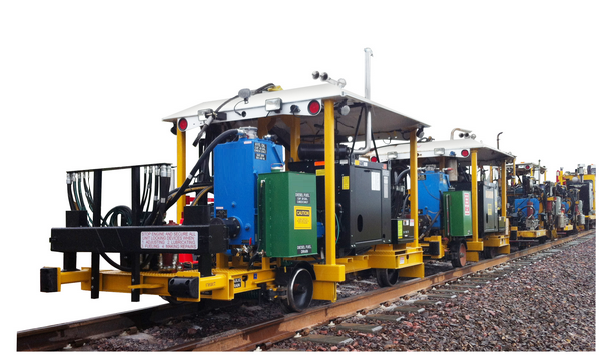

SPIKE PULLER SINGLE-SIDED(Super Claws)

Category	Specification	Value
General	Weight	7,250 lbs
	Length	14’
	Width	7’ 6”
	Height	8’ 6”
	Wheel base	7’
	Travel/work/towing speed	25 mph (maximum) / 5 mph (maximum) / 20 mph (maximum)
Capacities	Fuel tank	12.8 gallons
	Hydraulic tank	28 gallons
Engine	Make/Model	John Deere 4024D
	Type	Four-cylinder
Hydraulic System	Make/Model	Sauer Danfoss Series 45
	Type	J-frame, open-circuit, axial piston pump
Electrical System	Battery	24 Vdc (dual 12V DC batteries), 1150 cold-cranking amps
Axle Drive System	Drive and propulsion type	Four-wheel, dual-axle, hydraulic chain drive
Brakes	Type/Style	Spring-applied/hydraulically released, four-wheel shoe-type
